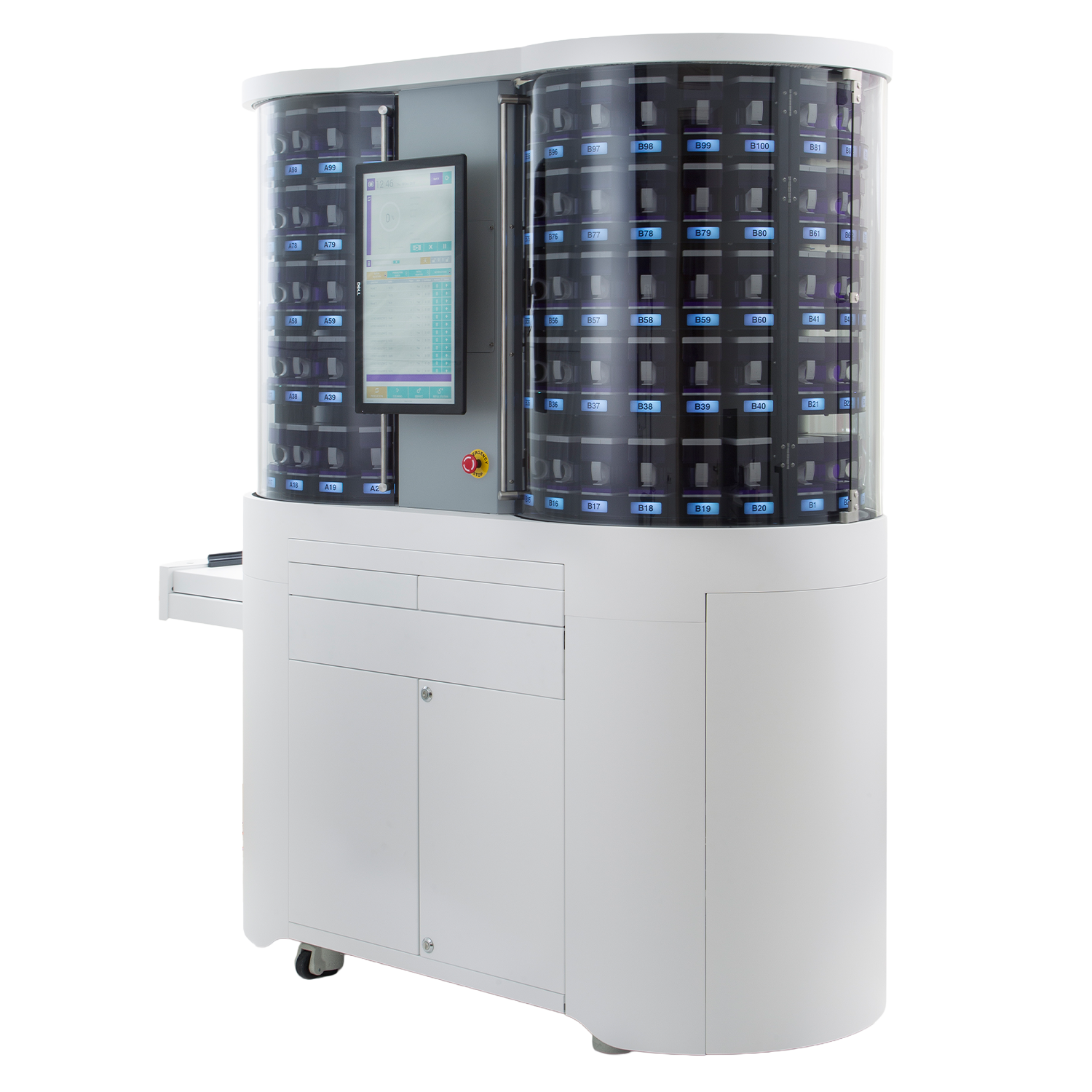

VBM
Efficient, safe and reliable multi-dose blister packaging
The VBM is a proven and reliable solution for automated medication administration and dispensing. It ensures that each patient receives the correct medication in clearly arranged blister packaging.
Brochure VBM download
Advantages
- Cost-effective automated solution for multiple dosing
- Significant time savings
- Scaling options: the VBM supports both single and multiple machine workflows
- Minimal risk of errors
- Integration with hospital and pharmacy software
- Easy to maintain
Unique features
Dual camera verification
The dual Vision cameras check each pill for count, shape, colour and size for maximum accuracy.

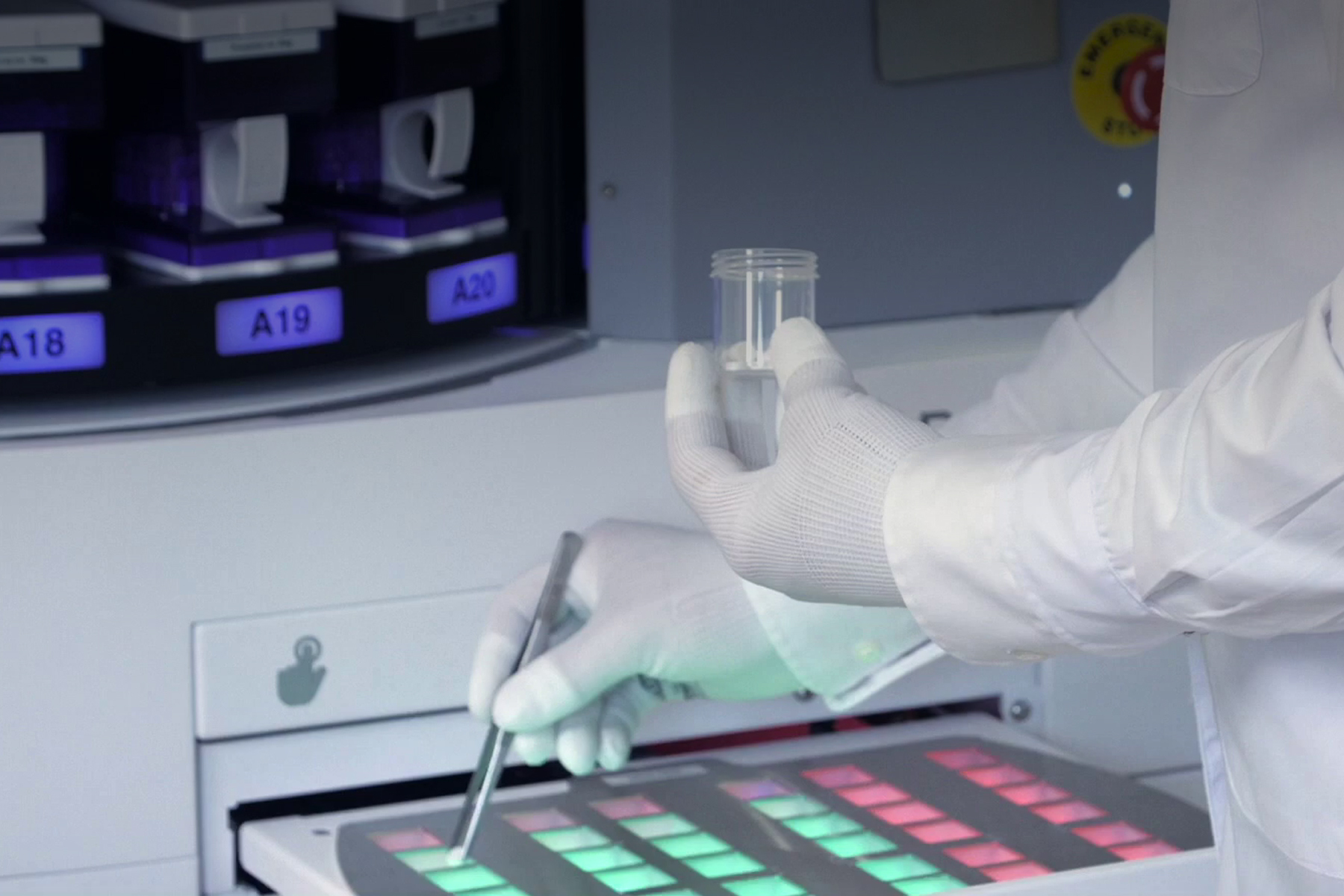

Manual filling with camera verification
For manual additions, the Vision cameras recheck the contents to ensure that manual steps are also safe and error-free.
Intuitive software on the machine and during blister checkout
The user-friendly software guides the operator step-by-step through the filling, checking and checking out of each blister pack.

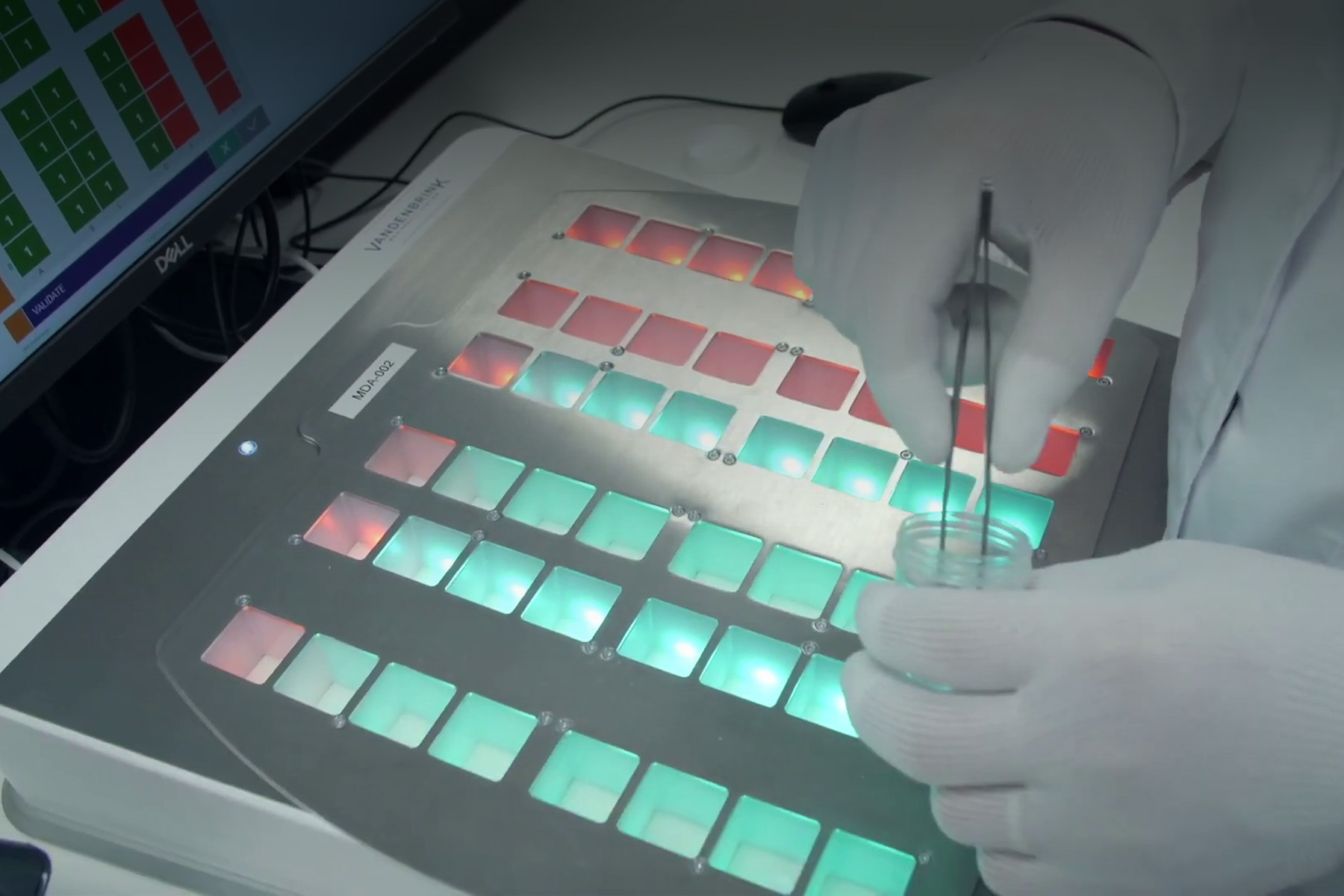

Prefill only possible (Prefill Station / MDA trays)
Special medication can be safely prepared in advance in the trays, allowing the workflow to continue without interruption.
Smart error detection
During the checkout process, the software flags incorrect cups and guides you to correct them immediately for a completely accurate blister card.

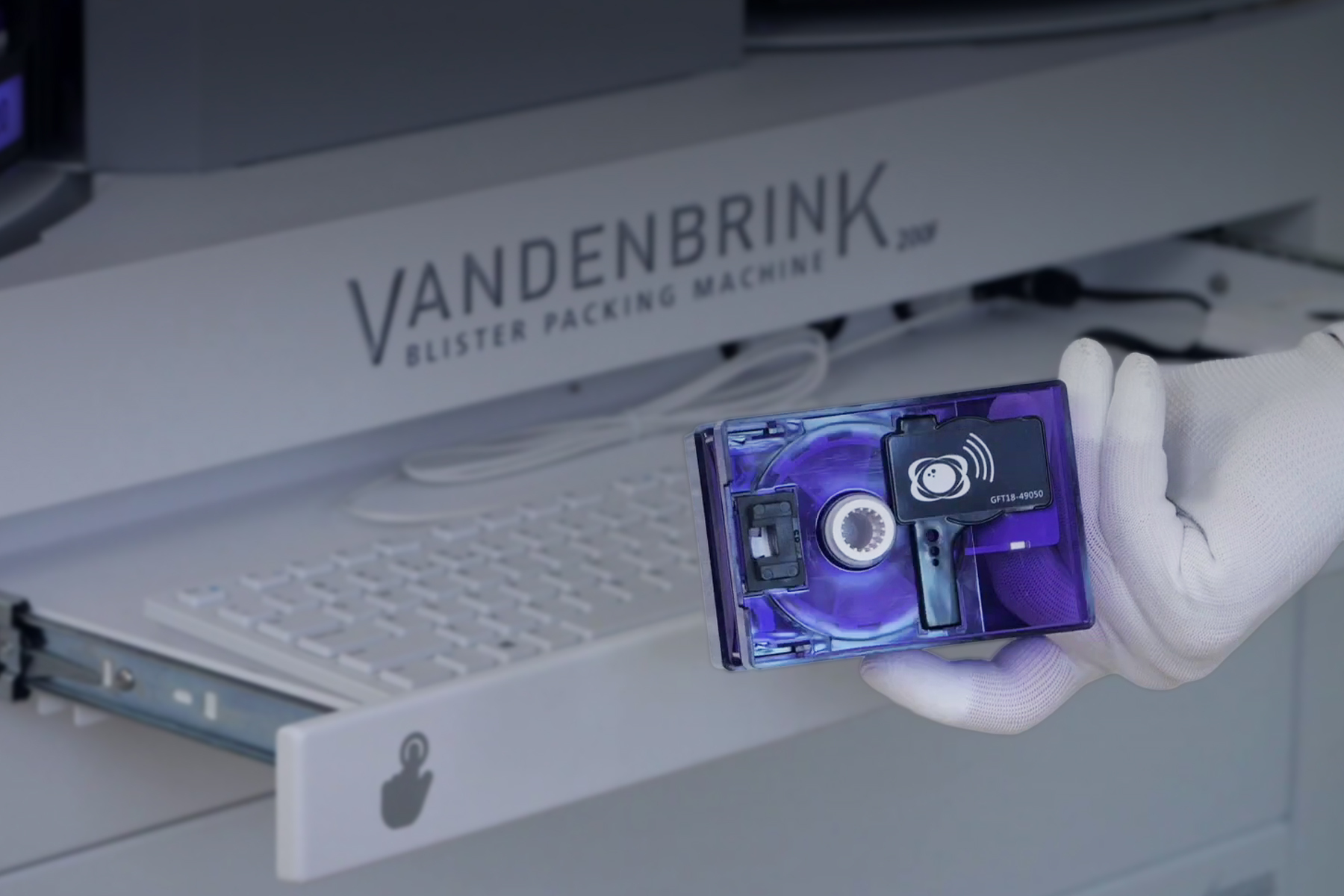

RFID tracking of cartridges and blister tray holders
Thanks to RFID tags, cartridges and blister packs are automatically recognised and tracked without interrupting the workflow.
Audio indication for the operator
Acoustic signals support the operator during critical moments in the filling or checking process.
Set-up
The VBM workflow begins with the creation of a pill library in the Vision Station. The VBM then automatically dispenses and verifies the correct medication per cup. Special medication is added via the MDA or Prefill Station. The blister cards are then checked, corrected and labelled in the BCO Station to create a completely accurate, patient-specific card.

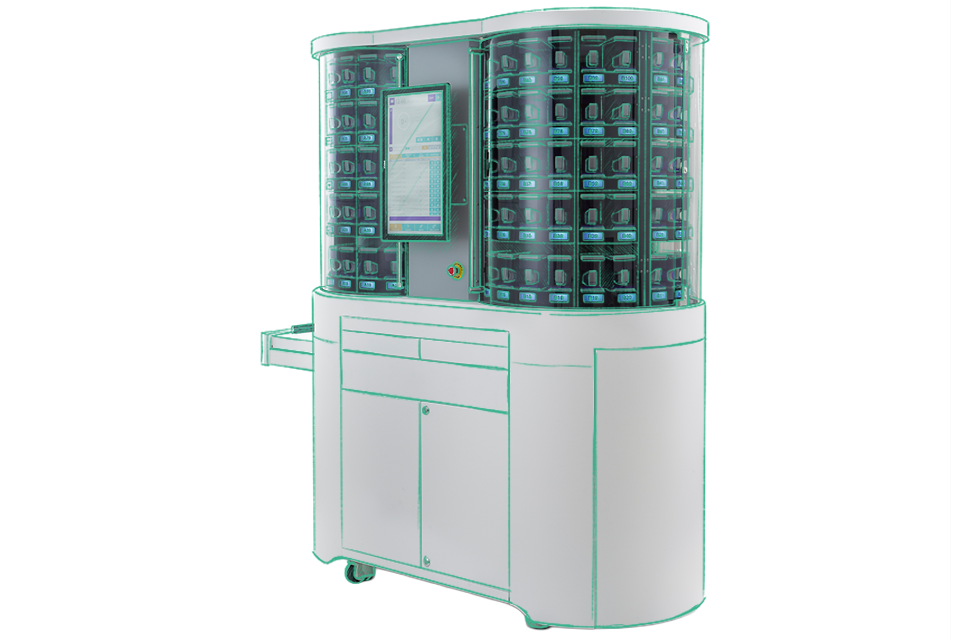

Technical specifications
Amount of cartridges
200
Dimensions
Width (mm): 1965
Height (mm): 2061
Depth (mm): 823
Weight
635 kg
Power consumption
800W
Operating environment
5-40°C and <80% RH non-condensing
Maximum card size
265x220x25
Pill size lenght/width limitation (mm)
5 - 23
Pill size thickness limitation (mm)
1.5 - 8.5
Maximum throughput
30-40 cards/hour
(blister format 4x7)
Brochure VBM download
Options

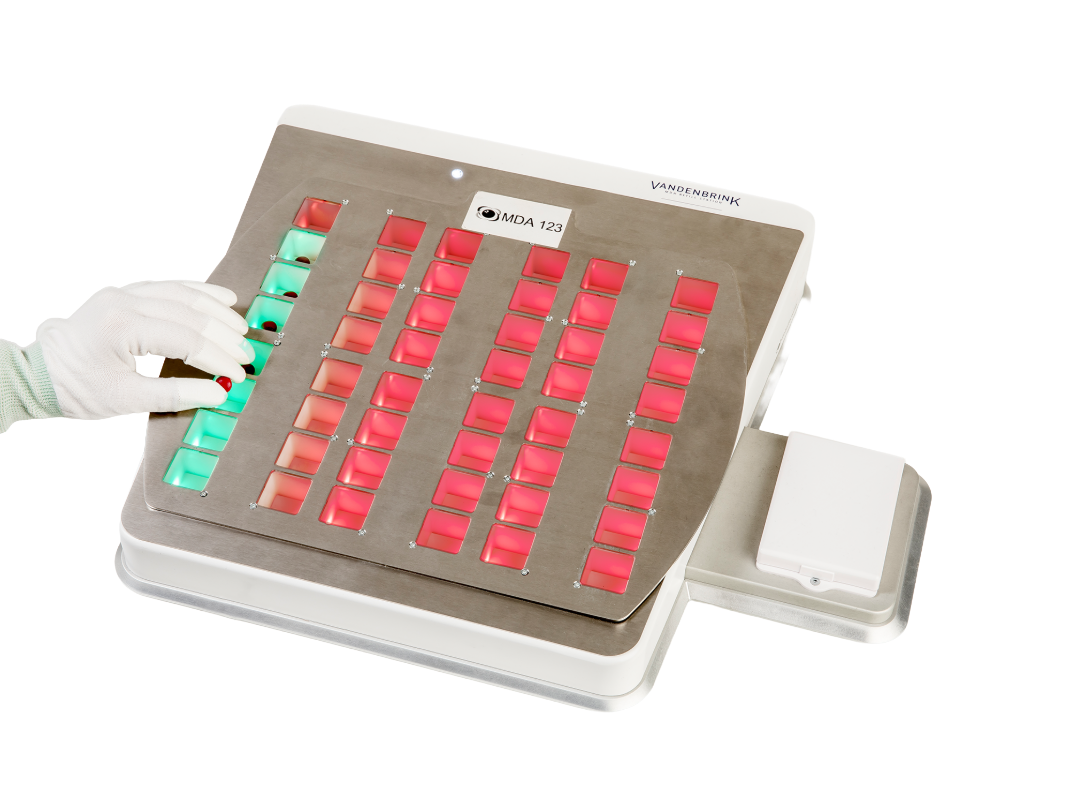

Prefill station
Fill special medication safely and efficiently with LED guidance and seamless integration into the VBM workflow.
Prefill station
The MDA Prefill Station enables special or non-machine-processable medication to be added manually, with minimal error and full traceability, to MDA trays without interrupting the packaging process.

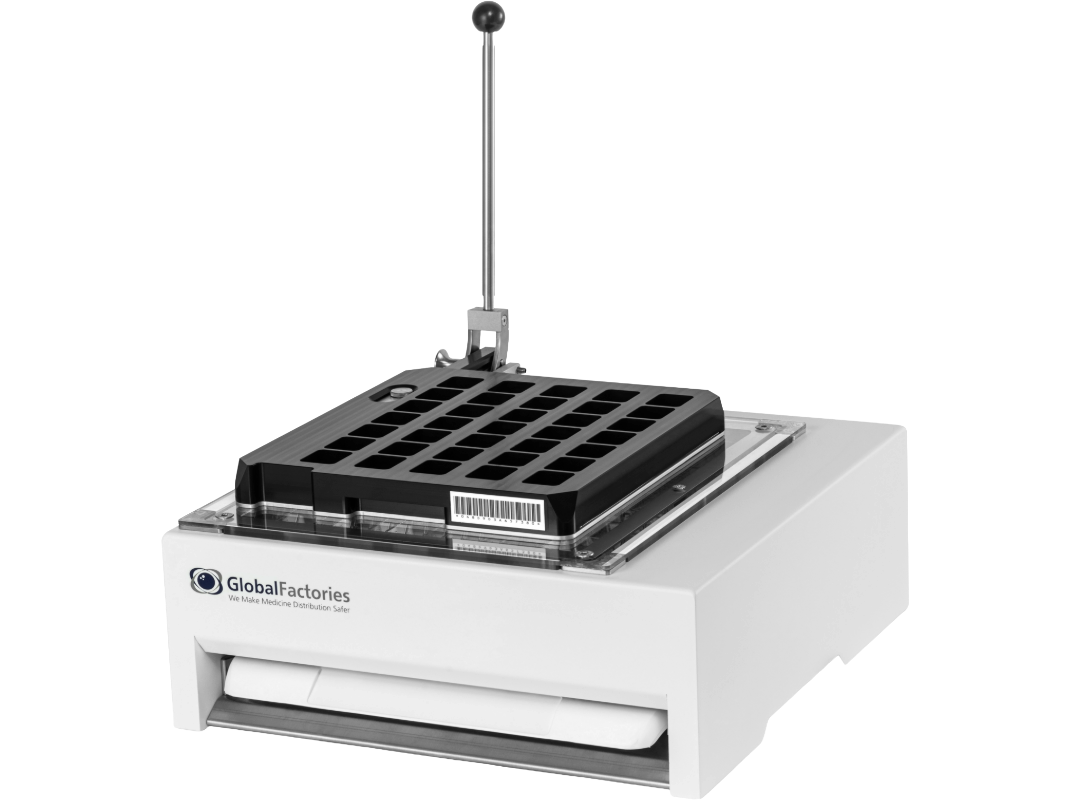

Flexifill station
Transfer medicines quickly and accurately to blister cards with a compact station that integrates seamlessly with the VBM ecosystem.
Flexifill station
The FlexiFill Station ensures accurate and efficient transfer of verified medication from the UDT to blister cards, with the option of manually adding special medication within a compact and flexible system.

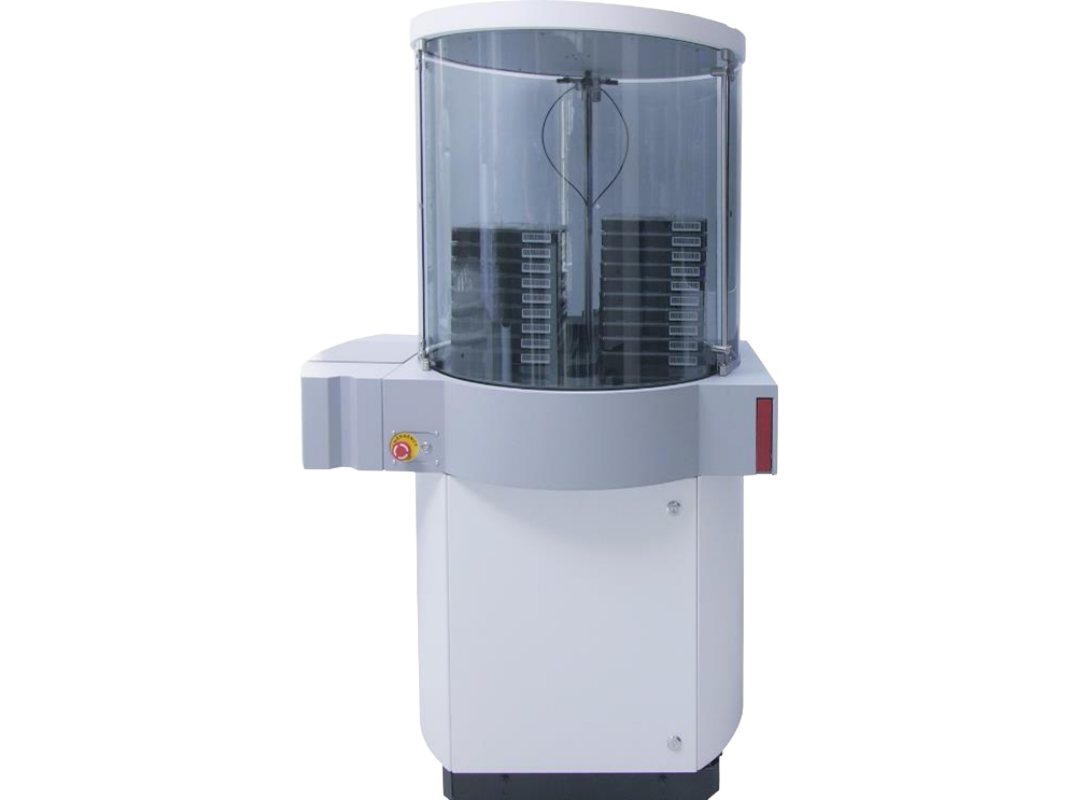

Flex I/O
Automate the filling and stacking of blister trays and increase your workflow efficiency with the Flex I/O module.
Flex I/O
The Flex I/O is an expansion module for the VBM 200F that allows up to 20 blister trays to be filled, verified and stacked fully automatically, allowing the operator to focus on other tasks.
Similar products

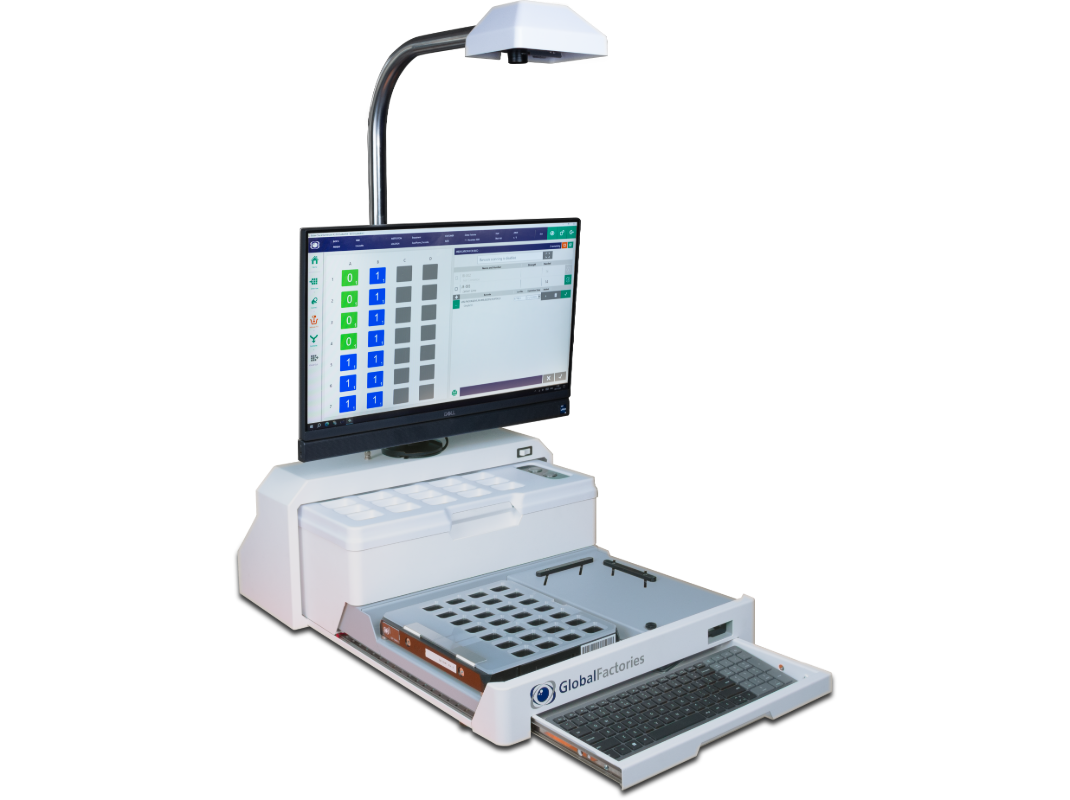

Guided Fill Station
Fill blister cards faster and more accurately thanks to smart LED guidance and automatic camera control in one user-friendly station system.
Guided Fill Station
The Guided Fill Station supports the manual filling of blister cards with real-time object detection, LED control and camera verification, ensuring that each dose is checked and error-free within a fully traceable workflow.
