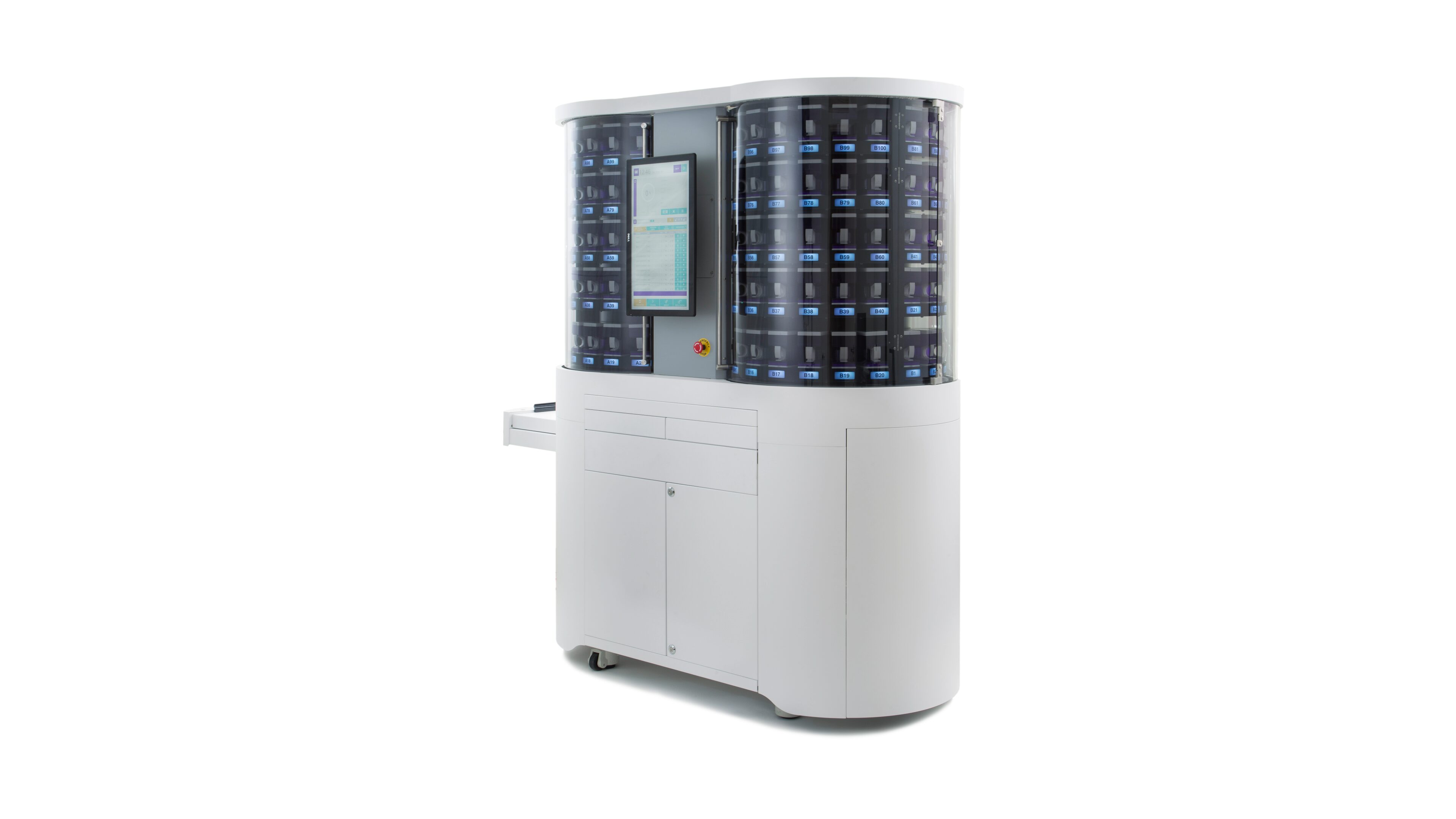

Dosing machine VBM 200F

Efficient, safe and reliable multi dose blister packing

The VBM 200F streamlines the preparation of multidose blister cards with intuitive software, advanced vision technology, and complete traceability. By automating manual tasks, it saves time, reduces errors, and frees up staff to focus on patient care.

Maximum safety: Every pill is double-checked, giving patients and pharmacists peace of mind

Full transparency: Track and trace every step of the process with RFID technology

Time-saving efficiency: Automates blister card filling, verifying up to 40 cards per hour

Simple operation: User-friendly software guides staff and reduces training time

Specifications

Dual camera verification

The Vision technology in both the Vision station and VBM takes pictures to verify every pill by quantity, size, shape, and colour. This ensures consistent and quick verification at every step, reducing errors and creating a complete visual record of the process.

Traceability with RFID

RFID tags in pill cartridges and blister tray holders ensure complete traceability throughout the workflow. Cartridges can be swapped or refilled without interrupting production, keeping the process smooth and reliable while maintaining full control.

Manual filling verification (MDA)

The VBM includes two built-in Multi Dispense Array trays for non-cartridge medications and pill fractions that operators fill manually. Even here, the Vision technology verifies these items for accuracy, ensuring that all medications are correctly packed.

Intuitive software

The software is extremely intuitive, with a clear and easy-to-use interface. It enables operators to track and trace each medication, maintain oversight, and keep full control over the entire packaging process from start to finish.

Efficient workflow

By combining intuitive software, RFID tags, and automated filling stations, the VBM achieves a throughput of up to 30–40 blister cards per hour (7 rows × 4 columns). Each card is fully filled, verified, and sealed, creating a dependable and efficient workflow.

Easy to maintain

The VBM is designed for straightforward cleaning and maintenance, with features such as a built-in ventilator to minimise dust. This makes it easier for staff to keep the system running smoothly and reduces the risk of downtime.

Characteristics

Track & trace

Complete traceability of every medication with RFID integration

Verification

200 swappable RFID pill cartridges

Dimensions

Width 1965 mm, Height 2061 mm, Depth 823 mm; required footprint 2500 × 1500 mm

Weight

635 kg

Power supply

100–240 VAC, 50–60 Hz; power consumption 800 W

Operating environment

5–40 °C, <80% RH non-condensing; noise level 58–63 dB(A)

Throughput

30–40 blister cards/hour (blister format 4×7)
